Brief Introduction : The instrument conforms to relevant standards .It uses pneumatic clamping sample , digital display and applies to measure bursting strength of paper , corrugated cardboard, leather, fabric and other sheet materials .
Standards :ISO 2758, ISO 2759, JIS-P8112, L1018, ASTM-D2210, TAPPI-T403
Technical parameters:
|
|
XHV-02C |
XHV-02D |
|
Test specimen |
Paper |
Corrugated Board |
|
Power Supply |
110V/220 +-10% 50/60HZ |
|
|
Hydraulic oil |
Silicon Oil 85%, distilled water 15% |
|
|
Horsepower |
Shockproof motor 1/4HP |
|
|
Induction way |
Pressure converter |
|
|
Indicating way |
Touch screen display |
|
|
The Diameter of upper Platen hole mm |
30.5 +- 0.05 |
31.5 +- 0.05 |
|
The Diameter of Lower Platen hole mm |
33.5 +- 0.05 |
31.5 +- 0.05 |
|
The dimension of rubber film mm |
Thickness 0.8---0.9 |
The height of middle bulge 2.5 +- 0.2 The height of middle bulge 27.8 |
|
The resistance of rubber film mm |
When raise 9mm,20-40 |
When raise 10mm,170-220 When raise 18mm,250-350 |
|
The tension between two plasten Kpa |
≥430 |
≥690 |
|
Testing Range Kpa |
5-1400 |
150-5500 |
|
Resolution Kpa |
0.1 Kpa |
|
|
Units |
Kpa, Psi and kg/cm2 |
|
|
Clamping Force |
0-1200Kpa (adjustable) |
|
|
Testing Accuracy |
+- 0.5% |
|
|
Oil ml/min |
95 +- 5 |
170 +- 5 |
|
Dimension |
420x420x620 mm |
|
|
Weight |
48kgs |
|

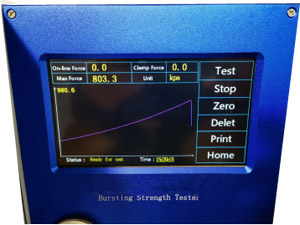

1. Adopt pneumatic clamping sample and microcomputer control technology, big color touch screen display and the functions of test data processing and printout , also can display test curves.
2. Use Silicon oil as the driving force to break the specimen to keep mahine always clean.
3. When the specimen is broken, it automatically stores maximum.
4. It have statistic function. <
5. Modern design concept of electro-mechanical integration.
6. It has compact structure , elegant appearance and convenient maintenance.
7. Have three units, Kpa, Psi and kg/cm2
Characteristics:
1. Adopt pneumatic clamping sample and microcomputer control technology, big color touch screen display and the functions of test data processing and printout , also can display test curves.
2. Use Silicon oil as the driving force to break the specimen to keep mahine always clean.
3. When the specimen is broken, it automatically stores maximum.
4. It have statistic function. <
5. Modern design concept of electro-mechanical integration.
6. It has compact structure , elegant appearance and convenient maintenance.
7. Have three units, Kpa, Psi and kg/cm2
ISO 2758, ISO 2759, JIS-P8112, L1018, ASTM-D2210, TAPPI-T403
